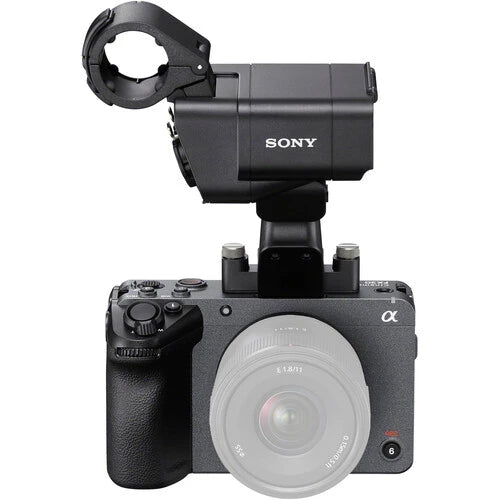

Sony FX30 E-Mount Overview
Key Features
- 26.1MP APS-C BSI CMOS Sensor
- UHD 4K up to 120p
- Compact Form Designed for Cage-Free Use
- 10-Bit 4:2:2 XAVC S-I,16-Bit Raw Output
- S-Cinetone/S-Log3/HLG, 14+ Stops DR
- Phase Detection AF/Face Tracking/Eye AF
- Standard ISO 100-32000 | Dual Base ISO
- Dual CFexpress Type A/SDXC Card Slots
- User LUTs & Timecode Sync Support

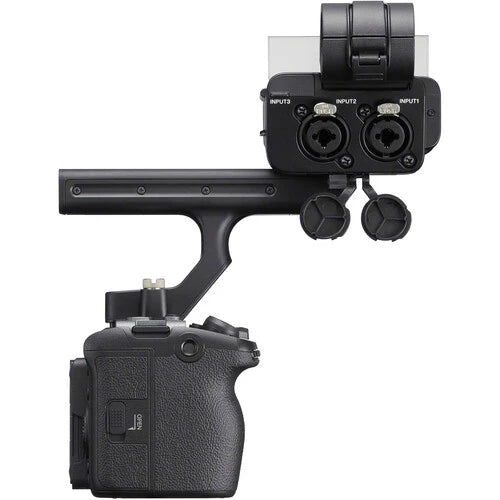

- Detachable XLR Handle Unit with 2 Inputs
Sony FX30 E-Mount Specs
Imaging
Lens MountSony ELens CommunicationYes, with Autofocus SupportSensor ResolutionActual: 27 Megapixel
Effective: 26 Megapixel (6192 x 4128)Sensor Type23.3 x 15.5 mm (APS-C) CMOSImage StabilizationSensor-Shift, 5-AxisBuilt-In ND FilterNoneInternal Filter HolderNoCapture TypeStills & Video
Exposure Control
Shutter TypeElectronic Rolling ShutterShutter Speed1/8000 to 30 Seconds in Photo Mode
1/8000 to 1/4 Second in Video ModeISO Sensitivity100 to 32,000 (Extended: 50 to 102,400)Advertised Dynamic Range14 StopsWhite Balance2500 to 9900K
Presets: Auto, Cloudy, Color Temperature, Daylight, Fluorescent, Incandescent, Shade, UnderwaterInternal Recording Modes
XAVC HS 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/119.88 fps
XAVC S-I 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/25/29.97/50/59.94/119.88 fps
XAVC S
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/25/29.97/50/59.94/119.88 fps
XAVC Proxy
1920 x 1080
1280 x 720External Recording Modes
4:2:2 10-Bit via HDMI
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps

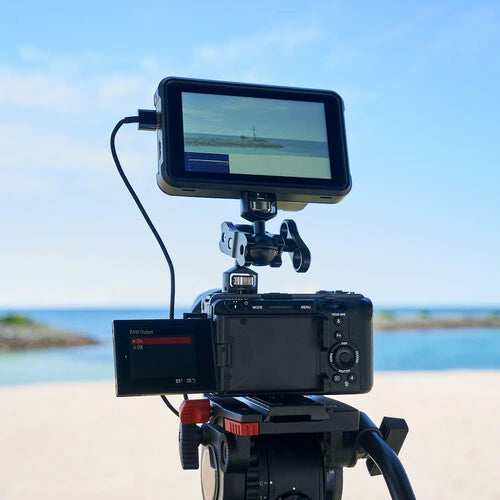

ProResRAW 16-Bit via HDMI
4672 x 2628 at 23.98/25/29.97/50/59.94 fpsVariable Frame RatesUHD: Up to 119.88 fps
1080p: Up to 240 fpsGamma CurveHDR-HLG, S Cinetone, Sony S-Log 3Built-In Microphone TypeStereoAudio Recording2-Channel 24-Bit LPCM Audio
4-Channel 24-Bit LPCM AudioIP StreamingNone
Still Image Capture
Image Sizes
3:2
26 MP (6192 x 4128)Aspect Ratio3:2, 16:9Image File FormatHEIF, JPEG, RawBit Depth14-Bit
Interface

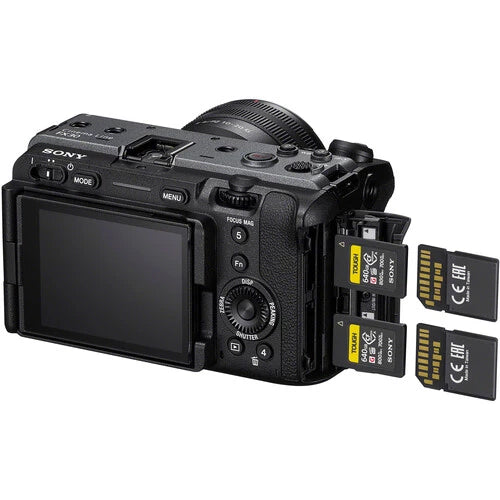

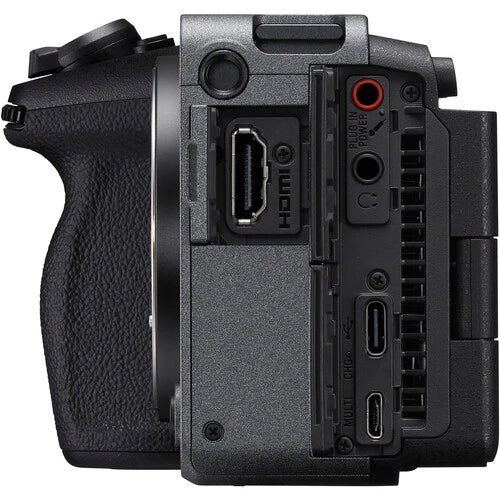

Media/Memory Card SlotDual Slot: CFexpress Type A / SDVideo I/O
1 x HDMI 2.0 OutputAudio I/O
2 x XLR / 1/4" TRS Combo Microphone (+48 V Phantom Power) Input on Included Handle
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera BodyPower I/O
1 x USB-C InputOther I/O
1 x Sony Multi/Micro-USB (Camera Interface, Timecode)
1 x USB-CWireless2.4 / 5 GHz Wi-Fi 5 (802.11ac) Control
BluetoothGlobal Positioning (GPS, GLONASS, etc.)None
Monitor

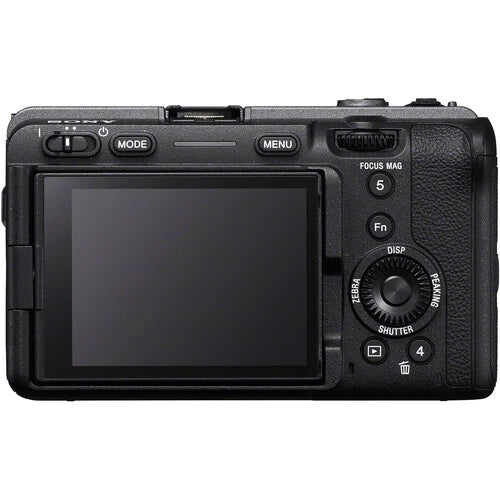

Size3"Resolution2,360,000 DotDisplay TypeArticulating Touchscreen LCD
Focus
Focus TypeAuto and Manual FocusFocus ModeAutomatic, Continuous-Servo AF, Direct Manual Focus, Manual Focus, Single-Servo AF, Touch AF & ShutterAutofocus Points
Video
Phase Detection: 495Autofocus Sensitivity-3 to +20 EV
Environmental
Operating Temperature32 to 104°F / 0 to 40°CStorage Temperature-4 to 140°F / -20 to 60°C
General
Battery TypeSony Z-SeriesTripod Mounting Thread

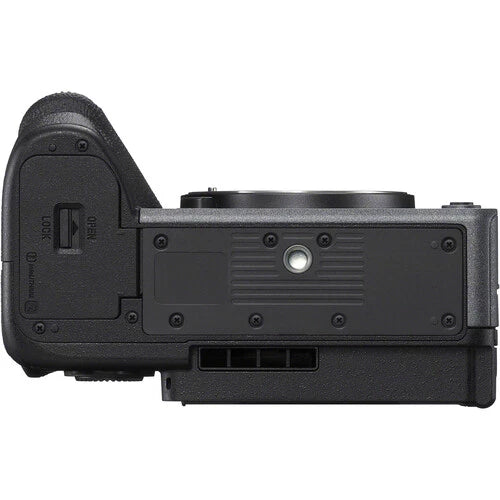

1 x 1/4"-20 Female (Bottom)Accessory Mount

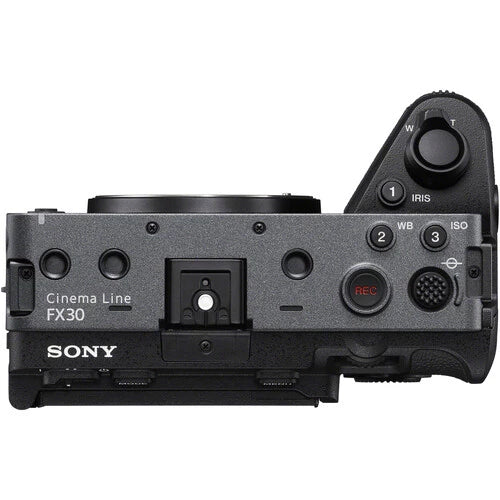

1 x Intelligent Hot Shoe on Camera Body
5 x 1/4"-20 Female on Camera Body
3 x 1/4"-20 Female on Included HandleMaterial of ConstructionMagnesium AlloyDimensions (W x H x D)5.1 x 3.1 x 3.3" / 129.7 x 77.8 x 84.5 mmWeight1.2 lb / 562 g (Body Only)
Packaging Info
Package Weight3.315 lbBox Dimensions (LxWxH)10.5 x 8.9 x 5.6"
In the Box:
- Sony FX30 Digital Cinema Camera with XLR Handle Unit
- Top Handle with XLR Input Module
- Sony NP-FZ100 Rechargeable Lithium-Ion Battery (2280mAh)
- Sony AC Adapter
- Sony ALC-B1EM Body Cap for E-Mount Cameras
- Sony Multi Interface Shoe Cap
- USB-A to USB-C cable (USB 3.2)
